*** ViaLED Base - Solar ***
ON SOLAR PANEL BY DAY / BATTERY BY NIGHT
POWER SOURCE : 80W Solar Panel + Internal High Capacity Battery
MADE IN EUROPE - BRACKET INCLUDED
> OPTIONS :
- Bicolor: Red and Green LEDs: + 170.00 EUR excluding VAT.
- Statistics Pack : + 320.00 EUR excluding VAT.
Data collected by USB key provided. Files in CSV format (compatible with Excel) for the diagrams.

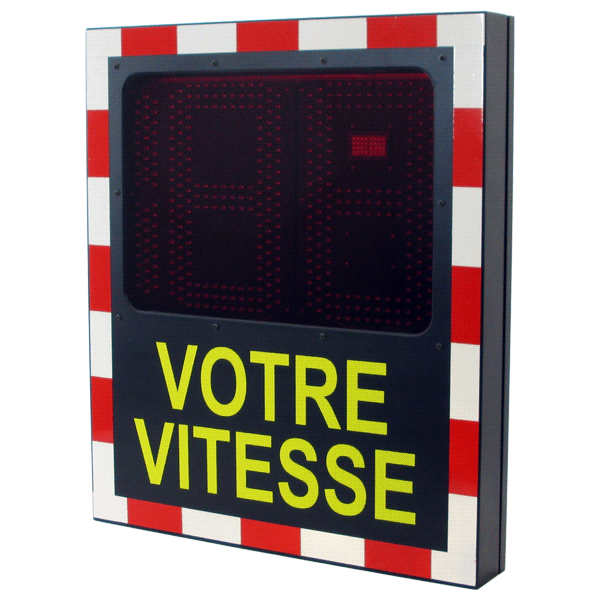

Product Overview : LEDs Solar Powered Radar Speed Display.

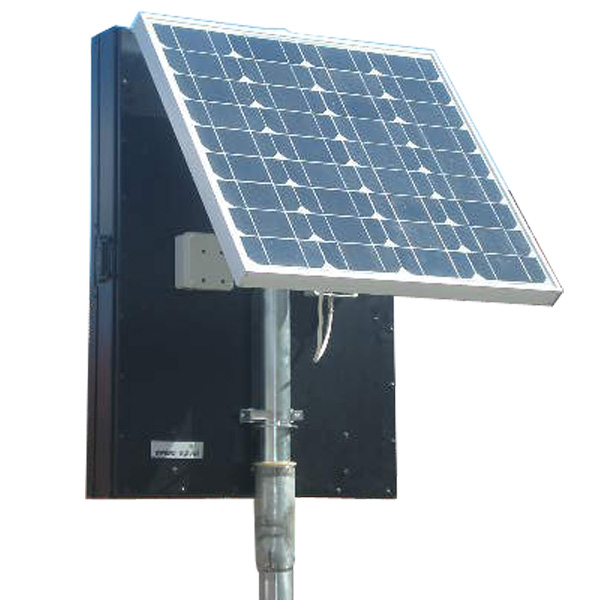

Powered by the solar panel during the day, it comes with an additional high capacity battery allowing operation during the night.
Display vehicles speed continuously under the speed limit.
Display blinking speed when above speed limit.
Technical data :
- 80 W Solar Panel
+ High Capacity Battery 12 V DC 20 Ah for night time operation
- Dimensions : 750 x 650 x 100 mm
- Size of numbers : 32 cm height
- LEDs color : Red (Bicolor : Red + Green LEDs in option at + 250.00 EUR excluding VAT).
- Speed : from 1 to 199 MPH (or KM/H)
- Accuracy : ± 1 MPH (or KM/H)
- Radar : 24.125 GHz - 5 mW (K-band)
- Radar type : Directional
- Measuring distance : from 0 to 330 feet (100 m)
- Visibility of system : 660 feet (200 m)
- Working temperature : - 20° C to + 50° C
- Weight : 25 kg / Package : 960 x 660 x 160 mm
- Case : Aluminum (black paint)
- Easy to install
- Installation manual
Manual set up of speed limit via a small internal switch during installation.
The SAFETY function can be activated to avoid car speed contests :
The ViaLED stop displaying speed at + 40 km/h above the set up speed limit.
A perfect solution for :
- School Area
- Industrial Area
- Dangerous Area
- Speed Limit Area
- Small Cities
- DownTown Streets
